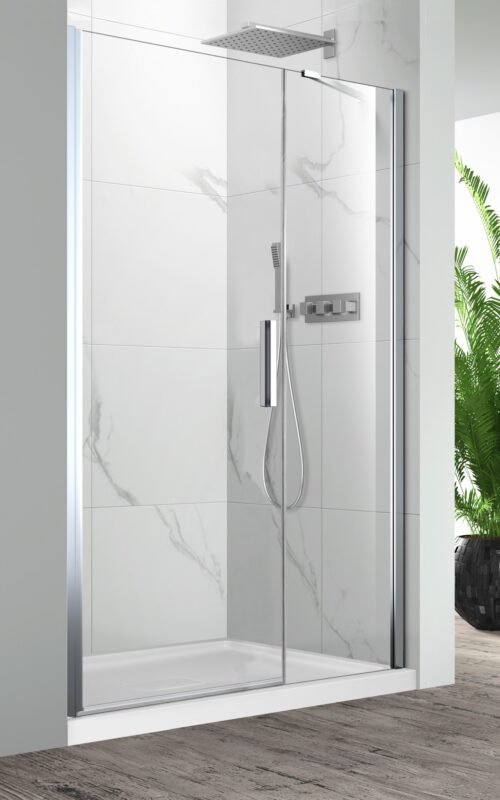

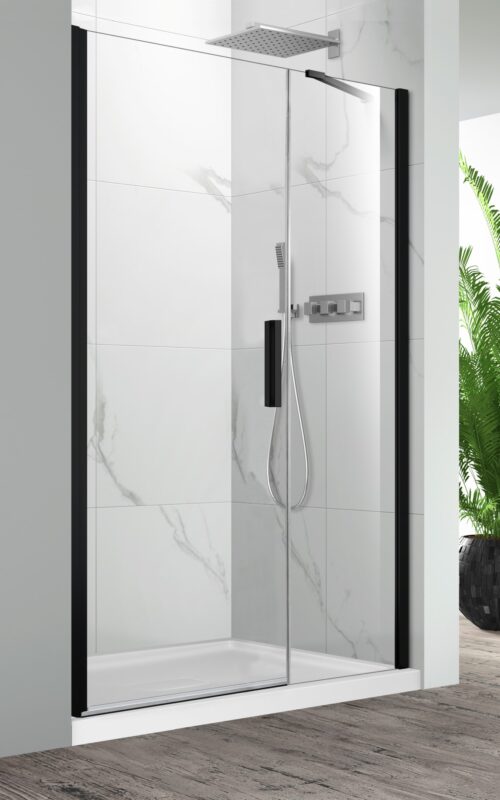

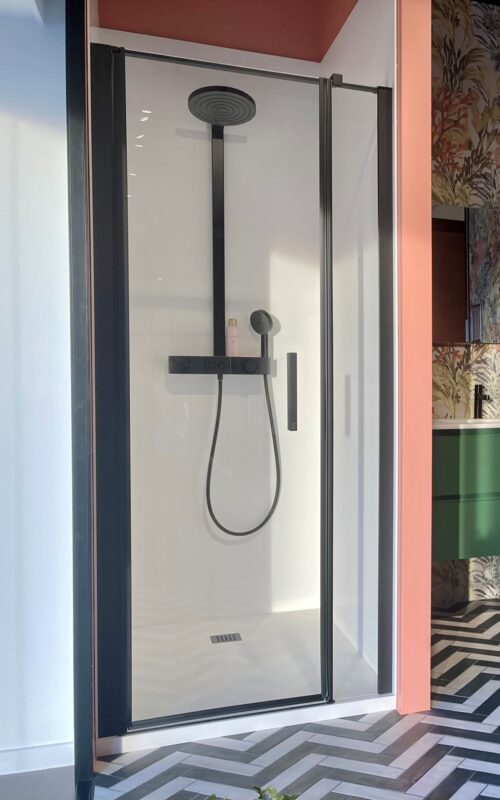

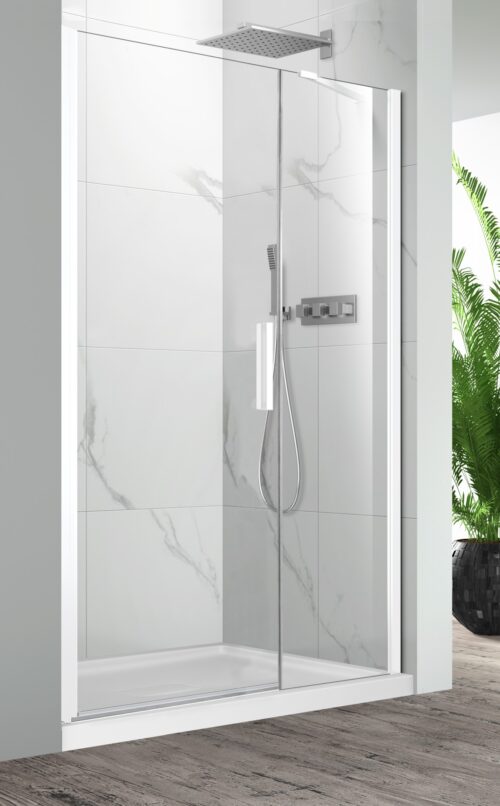

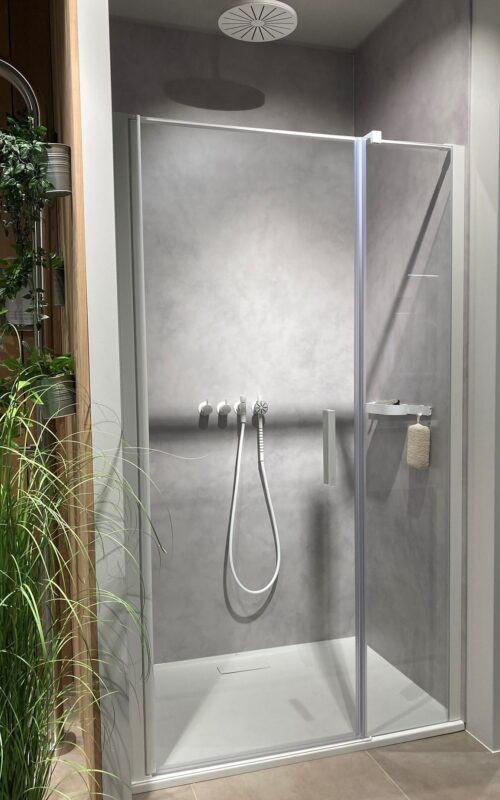

Alu Concept 444

Alu Concept 444 is a pivot door at 90° with a fixed panel.
The door can only be installed between two walls.

Specifications:

• Name: Alu Concept 444
• Serie: Design
• Type: 90° swing door with fixed panel.
• Freestanding installation: Yes, can be placed between two walls.
• Combinations: No
• Height: Standard 2000mm
  Can be lower than standard
  Can’t be higher than standard
• Width: Custom-made: 600-1600mm
• Finish:
  Basic colours: Polished, White Matt and Black Matt
• Glass: 6mm tempered safety glass (standard NBN 23-002, class NBN EN 12600)
• Types of glass:
  Standard +0%*: Transparent
  Other types of glass +20%*: Opal mat, Extra transparent, Bronze, Gris, Green, Crepi
  Other types of glass +35%*: Cathderal, Opal white
• Glass treatment:
  Standard +0%*: No glass treatment
  Glass treatment +20%*: Aquaclean
  Glass treatment +35%*: Zone Intime
• Beveling/Cutouts: Not possible.
• Dimensional survey: Possible with additional cost (upon requested).
• Installation: Possible with additional cost (upon requested).

*Is the additional charge calculated on the standard price of the product.

Remarks:

• Product:
  Only available ascustom-made.
  One hinge profile with lift function + stop profile with seal.
• Production:
  Custom made per mm
  Custom-made: you provide the desired width. Width from tiling to end of glass.
• Installation:
  A profile of glass must always be placed on the tiling.
  If not, this could lead to problems with waterproofing.
• Preparation:
  Consider the size and weight of the glass.
  Can the glass be brought into the bathroom and installed?
• Dimensional survey:
  Can only take place after the installation of the shower tray and tiling.
